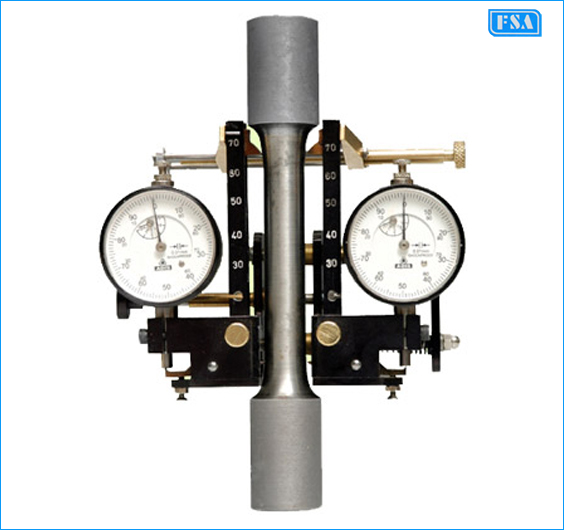

Mechanical Extensometers ( Model : FXT-3 )

• It is an attachment to Universal Testing Machine and Tensile Testing Machines, used to find out the proof stress at
  the required elongation percentage.
• It measures the elongation of a test piece on load for the set gauge length.
• Least count of measurement 0.01 mm and maximum elongation measured upto 3 mm.
• Adjustable gauge length from 30 mm to 120 mm
• Round specimen from 1 mm to 20 mm dia and flat specimen from 1 mm to 20 mm thickness can be
  accommodated.


Mechanical Extensometers

Technical Specification for Mechanical Extnsometers
SPECIFICATION
Measuring Range
0 - 3 mm
Least Count 0.01 mm
Gauge length adjustable from 30 - 120 mm ( 30 - 70 mm can also be given )
Specimen size Round 1 to 20 mm or flat upto 20 x 20 mm
