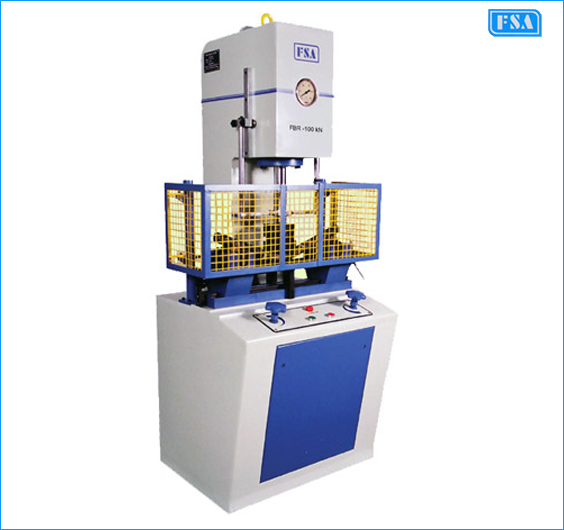

Bend and Rebend Testing Machines (Model - FBR-100 kN)

We are Manufacturer, Supplier, Exporter of Bend and Rebend Testing Machines and our set up is situated in Sangli, Maharashtra, India.

• To conduct testing of carbon steel bars upto 40 mm diameter for reinforcement of concrete.
• C-frame design & hydraulically operated.
• Maximum load capacity provided is 100 kN.
• Dia.of support rollers is 100mm & distance between support rollers is 400mm.
• Different sizes of formers (tools) are available from diameter 6 to 400mm.
• Suitable re-bending tools supplied which will be incorporated in the machine.
• Hinged grilled safety doors at front is provided for safety.
• Accuracy conforming to BS : 4449



Bend and Rebend Testing Machines


Technical Specifications

SPECIFICATION
Hinged grilled safety door at front is provided.
Maximum load capacity
10,000 kgs.
Stroke of piston 300 mm / min.
Height of fall
250 mm.
Maximum operating pressure of hydraulic system
200 kg /cm sq.
Dia of support rollers
100 mm.
Distance between support rollers (adjustable)
400 mm.
Formers of following diameters provided along with machine
Dia. - 12, 16, 20, 24, 30, 32, 40, 50, 60, 80, 140, 175, 224, 280 mm
Suitable re-bending tools supplied which will be incorporated in the machine.
The up down of piston is through hand operated DC valve.
The piston speed during down stroke is adjustable through manual operation of flow control valve.
