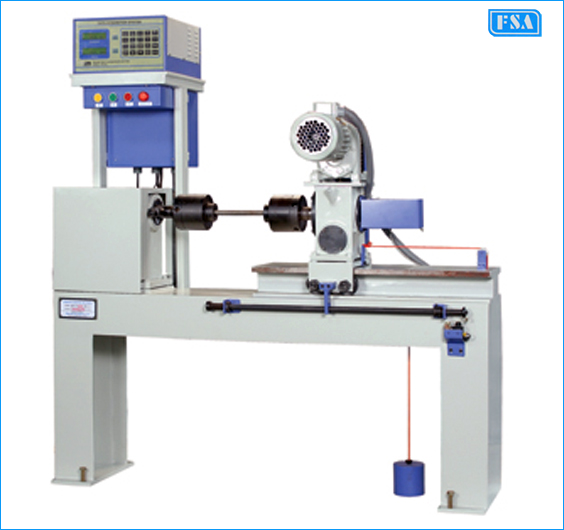

Digital Torsion Testing Machines ( Model : MTT-E )

• Suitable for Torsion and twist tests on various metal rods and flats.
• Torque measurement by torque cell.
• One range with a high resolution throughout the range.
• Geared motor to apply the torque to specimen through gear box
• Measurement of Angle of Twist by Rotary Encoder.
• Display of Torque and Angle of twist on LCD display provided on Data Acquisition System.
• Facility for connecting the DAS Panel to PC
• Accuracy of torque measurement ± 1% in the range from 4% to 100% of machine capacity.


Digital Torsion Testing Machines


Technical Specification

 SR.NO.  SPECIFICATION  MTT-E-100 Nm  MTT-E-200 Nm  MTT-E-500 Nm  MTT-E-1000 Nm  MTT-E-2000 Nm
 1  Max. torque capacity (Nm)  100  200  500  1000  2000
 2  Torque Resolution (Nm)  0.01  0.02  0.05  0.1  0.2
 3  Angle of twist (Degree)  0.1
 0.1  0.1  0.1  0.1
 4   Torsion speed and irection  1.5 RPM Reverse  1.5 RPM Reverse
 1.5 RPM Reverse   1.5 RPM Reverse  1.5 RPM Reverse
 5
 Distance between grips (mm)
 0 – 400
 0 – 450  0 – 500  0 – 600  0 – 1000
 6

 Grips for round bar of dia (mm)
 4 – 8
 8 – 1
 7 – 10
 10 – 15
 15 – 20
 10 – 17
 17 – 24
 24 – 30
 10 – 18
 18 – 26
 26 – 34
 20 – 30
 30 – 40
 40 – 50
 7
 Grips for flat bars thickness Width  2 – 8
 25
 3 – 10
 30
 5 – 12
 40
 5 – 15
 50
 10 – 20
 60
 8  3 Ph, 440V, 50 Hz, AC Motor HP Approx
 0.5
 0.5  1.0  1.0  2.0

 Provision to conduct test slowly by a handle which facilitates finding modulus of rigidity “G”
 Optional Accessory : Special comprehensive software for Torsion test to give Torque vs Angle of Twist graph and also to calculate various parameters like Torsional Shear Strength, Modulus of  Rigidity, etc.
