Salient Features

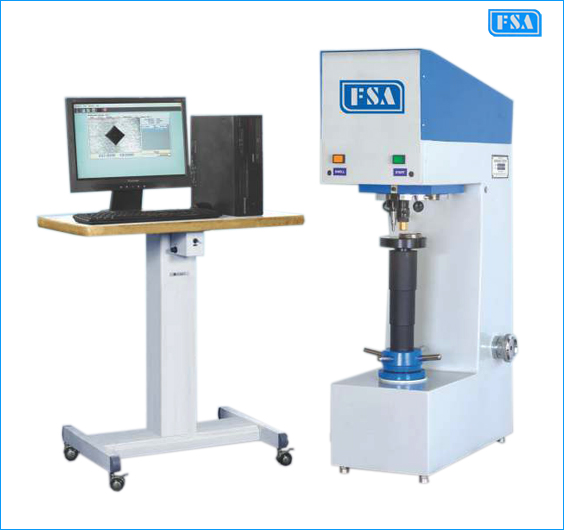

• Fully Computerized system for measurement of Vickers Hardness indentation display on PC. PC will be supplied by us.
• Vickers hardness is measured using image processing techniques based on conditional edge detection. The complex algorithm conceives into highly accurate, repeatable and faster output than conventional methodology.
• Specially designed multi element lens system with dual illumination technology offers constant magnification in field of view.
• Balancing accuracies achievable up to 0.5 microns for maximum rotor weight.
• Active CMOS Sensor, which contains photo detector and an active amplifier offers sharper image than a normal CCD camera.
| SPECIFICATION | |
| Least count of measurement | 0.0005 mm |
| Vickers test loads | 5, 10, 20, 30, & 5O kgf |
| Selection of test loads |
by rotating knob |
| Test height x Throat | 225 x 135 mm |
| Diagonal measurement range | 0.05 to 0.5 mm |
| Indirect Verification | by standard test blocks |
| Conforms to standard | IS : 1501-2020 |
| Machine Sizes (Aprox) (L x W x H) | 585 x 290 x 860 mm |
| Total Weight of Machine (Aprox) | 75 kgs (approx) |
Machine Applications
Designed for measuring Vickers hardness of steel and metals of all types. Suitable for small, hard and thin specimens and also for case hardened or coated jobs of low case depth.

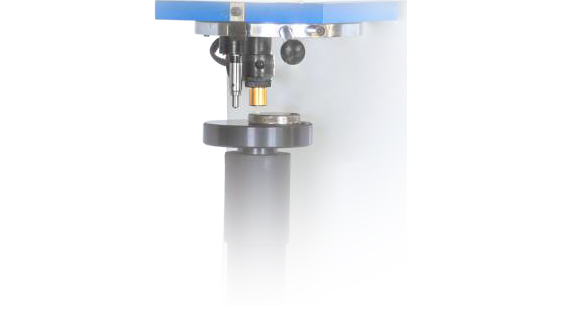

| PARTICULARS | QTY. |
| Flat Table of 100 mm dia. | 1 No. |
| Vee Table for Specimen - 6 to 80 mm dia. | 1 No. |
| Vickers Diamond Indentor |
1 No. |
| Vickers Hardness Test Block | 1 No. |
| Electrical Cord | 1 No. |
| Instruction Manual | 1 Book |
| PC with Software | 1 No. |
