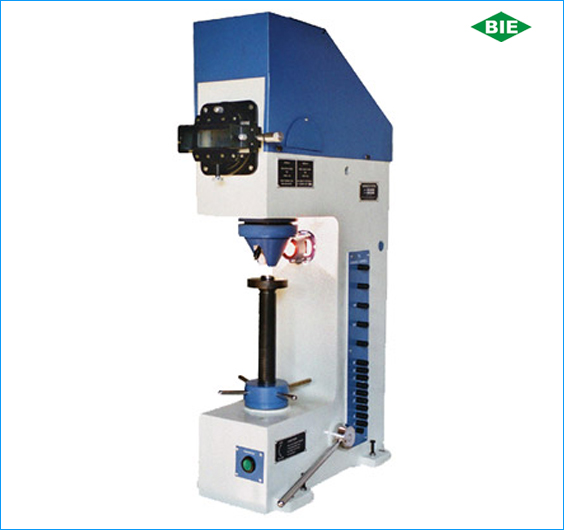

Vickers Cum Brinell Hardness Testing Machines, Manufacturer, India

We are Manufacturer, Supplier, Exporter of Vickers Cum Brinell Hardness Testing Machines, Vickers Cum Brinell Hardness Testers and our set up is situated in Sangli, Maharashtra, India.

• Suitable for finding out Vickers / Brinell hardness of metals from soft to very hard.
• Push button control for load selection.
• A range of test loads for Vickers / Brinell - from 1 kg to 250 kg.
• Optical Magnifications - 35X, 70X & 140X available.
• A precision Diamond Indentor (136° pyramid) is used to make sharp indentations on the specimens / samples.
• Maximum Test height x Throat : 250 x 150 mm.
• Load accuracy well within ± 1% of nominal load value. Machine conforms to IS:1754.
• Computerized model is available .Computerized model has built in CCD and suitable advanced software.
Hardness will be displayed on computer monitor automatically. Results printout can be taken.

REQUEST A QUOTE

Technical Specification

MODELS	BV-50	BV-50-S	BV-120	BV-120-S	BV-250	BV-250-S
Loads (kgf.)	5, 10, 15, 20, 30, 40 & 50 (Loads for Vickers)	1, 2, 5, 10, 20, 30, 40 & 50 (Loads for Vickers)	5, 10, 15, 20, 30, 40, 50, 60, 100 & 120 (Loads for Vickers)	1, 2, 5, 10, 15, 20, 30, 40, 50, 60, 100 & 120 (Loads for Vickers)	5, 10, 15, 20, 30, 40, 50, 60, 100 & 120 (Loads for Vickers)	1, 2, 5, 10, 15, 20, 30, 40, 50, 60, 100 & 120 (Loads for Vickers)
Loads (kgf.)	15.625, 31.25 (Loads for Brinell)*	15.625, 31.25 (Loads for Brinell)*	15.625, 31.25 (Loads for Brinell)*	15.625, 31.25 (Loads for Brinell)*	15.625, 31.25, 62.5, 187.5 & 250 (Loads for Brinell)*	15.625, 31.25, 62.5, 187.5 & 250 (Loads for Brinell)*
Optical Magnification	70X, 140X	70X, 140X	70X, 140X	70X, 140X	35X, 70X, 140X	35X, 70X, 140X
Maximum Test Height mm)	250	250	250	250	250	250
Sweep of Machine Frame (mm)	150	150	150	150	150	150
Weight Approx. (kgs)	175	180	185	190	195	200
Dimension LxWxH (mm) (Approx.)	660 x 320 x 990	660 x 320 x 1130	660 x 320 x 990	660 x 320 x1130	660 x 320 x 990	660 x 320 x 1130
Connected Load	0.1 KVA, 1 Phase, AC, 220V, 50Hz
Machine is compatible with: 13277-1992

· Loads can be supplied in Newtons also. · Least count of optical system 0.0005mm
These Brinell loads can be used by purchasing suitable ball indenters and test blocks
Measuring Range, Possible w.r.t. Selected, Optical Magnification	0-3.2 mm on 35X Magnification
	0-1.6 mm on 70X Magnification
	0-0.8 mm on 140X magnification

Standard Accessories

MODELS	BV-50	BV-50-S	BV-120	BV-120-S	BV-250	BV-250-S
Flat Table of 100 mm Dia.	1 No.	1 No.	1 No.	1 No.	1 No.	1 No.
Vee Table for Specimen - 6 to 80 mm Dia.	1 No.	1 No.	1 No.	1 No.	1 No.	1 No.
Vickers Diamond Indentor	1 No.	1 No.	1 No.	1 No.	1 No.	1 No.
2.5 mm Ball Indentor	-	-	-	-	1 No.	1 No.
5 mm Boll Indentor	-	-	-	-	1 No.	1 No.
Vickers Hardness Test Block	1 No.	1 No.	1 No.	1 No.	1 No.	1 No.
Brinell Hardness Test Block	-	-	-	-	1 No.	1 No.
Electrical Card	1 No.	1 No.	1 No.	1 No.	1 No.	1 No.
Instruction Manual	1 Book	1 Book	1 Book	1 Book	1 Book	1 Book
2.5 mm Steel Balls	-	-	-	-	5 Nos.	5 Nos.
5 mm Steel Balls	-	-	-	-	5 Nos.	5 Nos.
Machine is compatible with: 13277-1992

Vickers Cum Brinell Hardness Testing Machines / Testers ( Model : BV )
