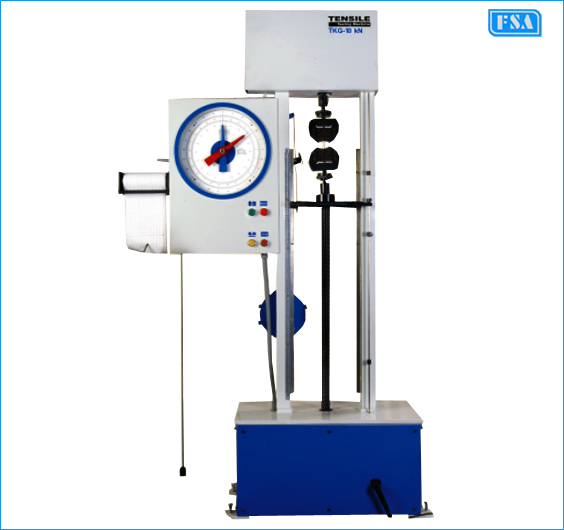

• Variety of tests like Tension, Compression, Cross breaking / Bending, Shear, Linear Bonding / Gripping / Peeling
strength of adhesives & tapes, etc. are conducted.
• Suitable for testing a wide range of materials like rubber, wood, plywood, plastic, rexins, ceramics, teflon, cardboard,
latex, composites, ferrous metals, non-ferrous metals,etc. of various forms like round, flat, thread, wires, dumbells,
fabric, belts, strips, ropes, etc.
• Wide range of Grips, Attachments & Special fixtures are available to suit variety of material and shapes.
• Continuous roll autographic “Load Vs Elongation” recorder.
• Elongation scale with least count 1 mm.
• Three measuring ranges for accurate testing.
• A number of straining speeds are available for proper selection.
• Machine with AC or DC drive motor is available.
• Various Models – Maximum Capacity from 200 N to 50 kN.
• Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
• Hand operated cutting press with different sizes dies are available for cutting dumbbell specimen.
| MAX. CAPACITY | MODEL - TKG | MODEL - TKG | MODEL - TKG | ||||||
| 200 N | 500 N | 1000 N | 2500 N | 5000 N | 10 kN | 25 kN | 50 kN | ||
| Measuring Ranges | 1st | 0-50 N | 0-100 N | 0-200 N | 0-500 N | 0-1000 N | 0-2 kN | 0-5 kN | 0-10 kN |
| 2nd | 0-100 N | 0-250 N | 0-500 N | 0- 1000 N | 0-2500 N | 0-5 kN | 0-10 kN | 0-25 kN | |
| 3rd | 0-200 N | 0-500 N | 0-1000 N | 0-2500 N | 0-5000 N | 0-10 kN | 0-25 kN | 0-50 kN | |
| Ranges Least Counts | 1st | 0.1 N | 0.2 N | 0.4 N |
1 N | 2 N | 0.004 kN | 0.01 kN | 0.02 kN |
| 2nd | 0.2 N | 0.05 | 1 N | 2 N | 5 N | 0.01 kN | 0.02 kN | 0.05 kN | |
| 3rd | 0.4 N | 1 N | 2 N | 5 N | 10 N | 0.02 kN | 0.05 kN | 0.1 kN | |
| Elongation Scale L.C | 1 mm | 1 mm | 1 mm | ||||||
| Grip Speration Minimum - Maximum | 25 mm 1000 mm |
25 mm 750 mm |
25 mm 600 mm |
||||||
| Traverse Speeds, Standard Speeds | 10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min. | 100 mm / min. | 25 mm / min | ||||||
| Optional Speeds | - | Additional speed of 50 mm/min | Alternative speed of 1.3 mm/min in place of 25 mm/min OR 10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min. |
||||||
| Additional speed of 500 mm/min | |||||||||
| Alternative speed of 1.3 mm/min in place of 100 mm/min | |||||||||
| 10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm/min. | |||||||||
| Optional Variable speed drive stepless variation | 50 to 500 mm / min. | 10 to 100 mm / min. | 2.5 to 25 mm / min. | ||||||
| H.P (for standard speed) | 0.25 / 0.5 | 0.5 | 0.5 | ||||||
| Supply | 3-Phase, 415 Volts, 50Hz, AC | ||||||||
| Over travel safety | Provided with each model | ||||||||
| Recorder (Graph) | Provided with each model | ||||||||
NOTE :
It is very important that while ordering the machine due care is taken in selecting proper capacity, traverse speeds, grip separation & grips. Following details should be furnished to ensure that testing of the materials is in conformity with the standards followed :
• Size, shape, materials of test specimens.
• Minimum & Maximum breaking load for test specimen (Not strength).
• The standard IS / BS / ASTM etc. to be followed.
• Straining rate required.
• Please send representative samples.
Dumb-Bell Specimen Cutting Accessories :
• Hand Operated Cutting Press, Size 150mm x 150mm
• Die overall length 50 mm as per IS:34 Part I & II, IS:5831
• Die overall length 75 mm as per IS:3400 Part, IS:434 Part I & II, IS:5831
• Die overall length 115 mm as per IS:3400 Part I, IS:2414, IS:2415 & IS:443
• Die overall length 152 mm as per IS:2076
| MODEL | CAPACITY | DESCRIPTION | SPECIFICATION | APPLICATION |
| TG 1/1 | 500 N | Eccentric Roller grip | 25 mm wide x 3 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG- 200 N & TKG -500 N |
| TG 1/2 | 2 kN | Eccentric Roller grip | 25 mm wide x 5 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N & TKG-2500 N |
| TG 1/3 | 2 kN | Eccentric Roller grip | 35 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG- 1000 N & TKG -2500 N |
| TG 1/4 | 5 kN | Eccentric Roller grip | 50 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N & TKG-2500 N |
| TG 1/5 | 5 kN | Eccentric Roller grip | 50 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG 5000 N & TKG 10 kN |
| TG 2/1 | 2.5 kN | Cam type grip | 100 mm wide x 10 mm thick | For fabric strip suits TKG -2500 N |
| TG 2/2 | 2.5 kN | Cam type grip | 100 mm wide x 10 mm thick | For fabric strip suits TKG -5000 N & TKG-10 kN |
| G 3/1 | 200 N | Vice type grip | 25 mm wide x 4 mm thick | For thin flat samples of smaller strength like paper etc suits TKG -200 N |
| TG 3/2 | 5 kN | Vice type grip | 500 mm wide x 25 mm thick | For flat materials like asbestos, leather, fabric, plywood suits TKG -2500 N |
| TG 3/3 | 5 kN | Vice type grip | 50 mm wide x 25 mm thick | For flat materials like asbestos, leather, fabric, plywood suits TKG -5000 N & TKG-10 kN |
| TG 3/4 | 2.5 kN | Vice type grip | 20 mm wide x 5 mm thick | For rigid wires upto 1 mm and flat strips suits TKG -2500 N |
| TG 3/5 | 5 kN | Vice type grip | 100 mm wide x 6 mm thick | For fabric specimen suits TKG-2500 N |
| TG 3/6 | 5 kN | Vice type grip | 100 mm wide x 6 mm thick | For fabric specimen suits TKG -5000 N & TKG-10 kN |
| TG 3/7 | 5 kN | Vice type grip | 200 mm wide x 10 mm thick | For fabric specimen suits TKG -5000 N & TKG -10 kN |
| TG 5/1 | 2.5 kN | Wedge type grip | 25 mm wide x 5 mm thick | For flat strips and wires suits TKG -2500 N |
| TG 5/2 | 10 kN | Wedge type grip | Round 5 to 10 mm Flat 25 mm wide x 10 mm thick | For round specimen or flat specimen suits TKG -5000 N & TKG -10 kN |
| TG 5/3 | 50 kN | Wedge type grip | Round 5 to 10 mm Flat 35 mm wide x 12 mm thick | For round specimen or flat specimen suits TKG -50 kN |
| TG 5/4 | 2.5 kN | Wedge type grip | Flat 25 mm wide x 20 mm thick | For extra thick plywood specimen suits TKG -2500 N |
| TG 5/5 | 50 kN | Wedge type grip | Flat 200 mm wide x 5 mm thick | For geo textile as per ASTM suits TKG -50 kN |
| TG 5/6 | 50 kN | Wedge type grip | Flat 38 mm wide x 20 mm thick | For extra thick specimen like plywood suits TKG -25 & 50 kN |
| TG 6/1 | 2.5 kN | O ring test fixture | - | For testing O rings suits TKG -2500 N |
| TG 7/1 | 500 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -200 N & TKG -500 N |
| TG 7/2 | 1000 kN | Bollard type grip | Tape width 6 mm max. | For HDPE tape suits TKG -1000 N |
| TG 7/3 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -2500 N |
| TG 7/4 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -10 kN |
| TG 7/5 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -25 kN & TKG -50 kN |
| TG 7/6 | 5 kN | Bollard type grip | Dia 4mm ropes. | For non metallic ropes / cords of nylon etc suits TKG -5000 N |
| TG 8/1 | 10 kN | Vice cum wedge type grip | Upto 5mm dia, Flat 25mm wide x 5mm thick | For wires and flat strips suits TKG -10 kN |
| TG 8/2 | 50 kN | Vice cum wedge type grip | Round 5 to 10mm, Flat 35mm widex10mm thk | For wires. Rods, and strips suits TKG -25 kN & TKG -50 kN |
| TG 8/3 | 50 kN | Vice cum wedge type grip | Flat 35 mm wide, x 5 mm thick. | For harder wires and strips suits TKG -25 kN & TKG – 50 kN |
| TG 8/4 | 50 kN | Vice cum wedge type grip | Flat 60 mm wide, x 10 mm thick. | For wider flat strips suits TKG -25 kN & TKG -50 kN |
| TG 9/1 | 10 kN | Special Bollard grip | Dia 10 to 16 mm | For Nylon ropes suits TKG -10 kN |
| TG 9/2 | 25 kN | Special Bollard grip | Dia 10 to 16 mm | For Nylon ropes suits TKG -25 kN & TKG -50 kN |
| TG 9/3 | 50 kN | Special Bollard grip | 50 mm wide | For flat belts and strips suits TKG -25 kN & TKG -50 kN |
| TG 9/4 | 50 kN | Special Bollard grip | 100 mm wide | For flat belts and strips suits TKG -25 kN & TKG -50 kN |
| TG 10/1 | 10 kN | Grip for special | shaped specimen, As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -2500 N |
| TG 10/2 | 10 kN | Grip for special | shaped specimen, As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -10 kN |
| TG 10/3 | 10 kN | Grip for special | shaped specimen, As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -25 kN & TKG -50 kN |
| TG 11/1 | 200 N | Compression cage | 85 (L) x 60 (D) x 140 (H) mm with dial gauge and scale | For compression test on flexible / soft materials suits TKG- 200 N |
| TG 11/2 | 200 N | Compression cage | 85 (L) x 60 (D) x 140 (H) mm without dial gauge and scale | For compression test on flexible / soft materials suits TKG -200 N |
| TG 11/3 | 2.5 kN | Compression cage | 100 (L) x 65 (D) x 200 (H) mm | For compression test on flexible/soft materials suits TKG -2500 N |
| TG 11/4 | 10 kN | Compression cage | 150 (L) x 80 (D) x 200 (H) mm | For compression test on flexible / soft materials suits TKG-25 & 50kN |
| TG 11/5 | 50 kN | Compression cage | 150 (L) x 150 (D) x 200 (H) mm | For compression test on flexible / soft materials suits TKG -25 & 50kN |
| TG 11/6 | 10 kN | Compression cage with dial gauge scale and ball edge. | 80 (L) x 60 (D) x 60 (H) mm | For compression test on flexible / soft materials suits TKG -25 & 50kN |
| TG 11/7 | 50 kN | Compression cage with fixtures | As per IS 10570 / 83 | For cold crushing strength suits TKG- 25 kN & 50kN |
| TG 11/8 | 10 kN | Compression cage with dial gauge & ball cage | 50 x 50 x 50 mm specimen | For compression test on plywood etc suits TKG -10 kN |
| TG 12/1 | 2.5 kN | Bend / cross breaking test fixture | 50 wide x 25 thk x 150 mm span 5 mm roller radius. | For conducting cross breaking test or bend test suits TKG -2500 N |
| TG 12/2 | 10 kN | Bend / cross breaking test fixture | 25 wide x 35 thk x 150 to 300 mm span. | For conducting cross breaking test or bend test suits TKG -10 kN |
| TG 12/3 | 25 kN | Bend / cross breaking test fixture | 25 wide x 35 thk x 150 to 400 mm long span. | For conducting cross breaking test or bend test suits TKG -25 kN & 50 kN |
| TG 12/4 | 25 kN | Bend / cross breaking test fixture | 60 wide x 10 thk x 90 mm span roller dia 30 mm | For a specimen 60 wide x 10 thk x 120 mm long suits TKG -25 kN & TKG 50 kN |
| TG 12/5 | 25 kN | MOR test fixture with compression cage | 40 x 40 mm specimen x 100 span | For conducting on refractory castables as per IS 10570 / 83 suits TKG 25- kN & 50 kN |
| TG 12/6 | 1 kN | Cross breaking test fixture | 50 wide x 100 mm span Roller radius 3.2 mm | For testing brake shoe material as per IS 2742 part 3 suits TKG- 2500 N |
| TG 12/7 | 2500 N | MOR test fixture | 500 mm span x width 100 mm | For plywood. |
| TG 12/8 | 10 kN | MOR test Fixture with dial gauge | 600 mm span x 80 mm width support radius 12, 18, 27, 37.5 mm | For plywood. |
| TG 12/9 | 5 kN |
Bend test Fixture | 600 mm span x width 50 mm | For two point loading as per IS 1734 part II suits TKG-25 & 50 kN |
| TG12/10 | 10 kN | Cross breaking test fixture | Span 500 mm x width 100 mm Roller dia 15 | For MOR test as per IS 1658 / 77. |
| TG 13/1 | - | Hand operated Press | 150 mm wide | For cutting Dumbell shaped rubber specimen with respective dies suits TKG -2500 N |
| TG 14/1 | 25 kN | Shear strength attachment | 20 mm width x 10 mm thk | For testing internal shear strength as per IS 2742-92 Part 5 suits TKG -25 & 50 kN |
| TG 14/2 | 10 kN | Glue shear test attachment. | 30 mm wide x 25 mm thk. | For glue shear testing of plywood suits TKG -10 kN |
| TG 14/3 | 10 kN | Shear test fixture | Dia 12.7 mm | For shear testing of laminates as per IS 1998 suits TKG -25 & 50 kN |
| TG 15/1 | 10 kN | Grip for plywood screw & nail withdrawl test | 75 mm wide specimen | For testing plywoods as per IS 2380 part XIV suits TKG -10 kN |
| TG 15/2 | 10 kN | Grip for plywood tensile strength perpendicular to surface | 50 x 50 mm specimen | For plywood as per IS 2380 Part V suits TKG -10 kN |
| TG 15/3 | 25 kN | Grip for plywood screw & nail with drawl test | 75 mm wide specimen | For testing plywood as per IS 2380 Part XIV suits TKG-25 & 50 kN |
| TG 15/4 | 25 kN | Grip for plywood tensile strength perpendicular to surface | 50 x 50 mm specimen. | For plywood as per IS 2380 Part V suits TKG - 25 & 50 kN |
| TG 21 | 10 kN | Special grip for fanhook | - | For testing fan hook suits TKG -25 & 50 kN |
| TG 22/1 | 1 kN | Grip for security of attachment of bottom stops of Zip | - | For testing of Zip as per Annexure D of IS: 3148-1991 Fig.7 suits TKG -2500 N |
| TG 22/2 | 1 kN | Grip for security of attachment for top steps & puller | - | For testing Zip as per Annexure H of IS: 3148-1991 (Fig 11 and Fig. 8) |
