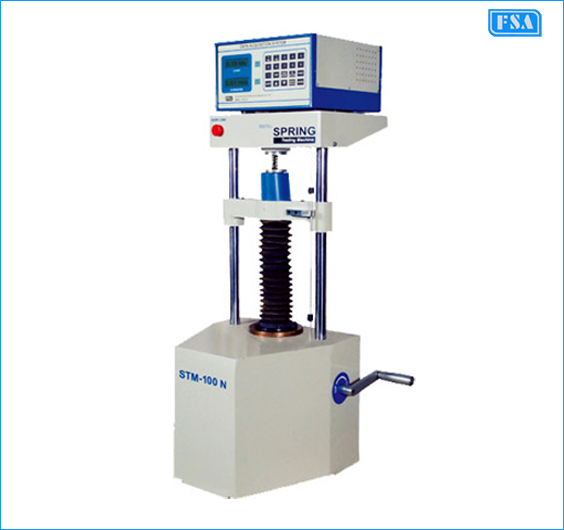

• The machine is table mounted, digital & hand operated.
• Load measurement by load cell & displacement by rotary encoder. LCD display on DAS panel for Load &
Displacement.
• Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 counts can also be offered at
extra cost. Standard displacement resolution is 0.01 mm.
• Vertical day light is 300 mm.
• Tension Shackles & Compression plates are provided for Tension & Compression springs.
• It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the
application.
• Cost of one load cell is included in the price, but additional load cell will be at extra cost.
• Various Models - Maximum Capacity from 100 N to 2000 N.
• Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
| Operation | Hand operated - Manually |
| Capacities | 50N, 500N, 1000N, 2000N Maximum |
| Load Measurement | By Load Cell |
| Displacement | By Rotary Encoder |
| Resolution |
10000 Counts for Maximum Load 0.2 N - For 2000 N Load Cell |
| Display For Load & Displacement |
LCD Display |
| Resolution of Displacement |
0.01 mm |
| Vertical day light |
300 mm |
| Load Accuracy |
±1% From 4% to 100% Load Cell Capacity |
| Tension Shackles Provided |
For Tension Springs |
| Compression Plate Provided |
For compression Springs |
| Overall Dimensions (L x W x H) |
500 x 400 x 1100 mm Approx |
