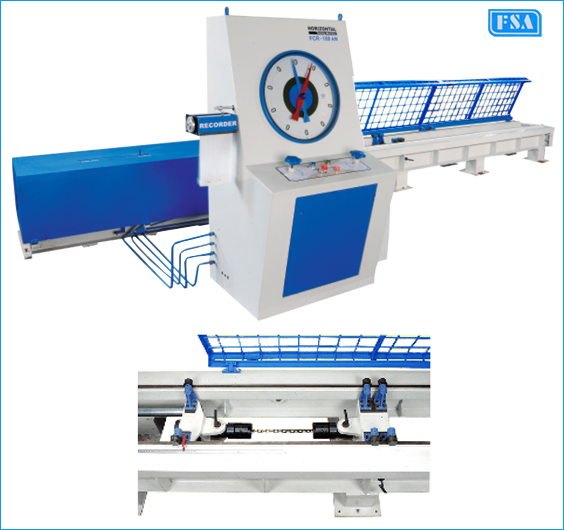

Analogue Horizontal Chain and Rope Testing Machines
( Model : FCR, FCR-E / FCR-EC )

We are Manufacturer, Supplier, Exporter of Analogue Horizontal Chain and Rope Testing Machiness and our set up is situated in Sangli, Maharashtra, India.

• Machines are designed to test chains, wire ropes & any long specimens for proof test or destructive tensile test.
• High loading accuracy & infinitely variable straining speeds to suit a wide range of materials.
• Continuous roll autographic recorder to get load - elongation graph.
• Robust loading frame, Simple controls & easy to operate.
• Adequate safety devices for safe operation.
• Analogue models with large dial & load measurement by pendulum dynamometer principle.
• Digital / Computerized models are also available where load Vs elongation is in digital display & printout of results
  can be taken.
• Special Accessories like - Extra Bed length, Extra Ram stroke, Various special grips / attachments / fixtures as per
  sizes / shapes of specimens, Load-stabilizer (at extra cost) can be provided to suit special application.
• Various Models – Maximum Capacity from 100 kN to 3000 kN.
• Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.


Analogue Horizontal Chain RopeTesting Machines

Technical Specification for Analogue Horizontal Chain RopeTesting Machines
FOR ANALOGUE MODELS FCR-EC-100 kN FCR-EC-200kN FCR-EC-300kN FCR-EC-500kN FCR-EC-1000kN FCR-EC-2000kN FCR-EC-3000kN
Max.Capacity (kN)
100
200
300
500 1000 2000 3000
2nd Measuring Range (kN)
Least count (kN)
0 - 50
0.1
0 - 100
0.2
0 - 150
0.25
0 - 250
0.5
0 - 500
1
0 - 1000
2
0 - 1500
2.5
3rd Measuring Range (kN)
Least count (kN)
0 - 20
0.04
0 - 50
0.1
0 - 60
0.1
0 - 100
0.2
0 - 250
0.5
0 - 500
1
0 - 600
1
Distance between gripping heads (mm) (inclusive of Ram stroke) 100 - 3000 100 - 3000 100 - 3000 100 - 3000 100 - 3000 100 - 3000 100 - 3000
Adjusted in steps (mm) 500 500 500 500 500 500 500
Ram Stroke (mm) 500 500 500 500 600 600 600
Max.Ram Speed (mm / min) 300 200 150 120 60 60 35
Bed Clearance (mm) 320 500
500
550 800 1000 1200
Grips for Round bar dia. (mm) 10 - 30 10 - 30 10 - 40 20 - 50 20 - 60 20 - 70 20 - 80
Grips for Wire Rope dia. (mm) 10 - 22 10 - 25
15 - 35
15 - 40
20 - 50
20 - 60 20 - 70
Total H.P. 1.5 2.5 2.5
3
6
7 9.5
Power Supply 3 Ph, 415V, 50 Hz, A.C.

Technical Specification for Analogue Horizontal Chain RopeTesting Machines - Digital & Computerised Types

FOR DIGITAL / COMPUTERISED MODELS FCR-100kN FCR-200kN FCR-300kN FCR-500kN FCR-1000kN FCR-2000kN FCR-3000kN
Least count for load (kN) 0.04 0.1 0.1 0.2 0.5 1 1
Accuracy of ± 1% in the range (kN) 5 - 100 10 - 200 15 - 300 25 - 500 50 - 1000 100 - 2000 150 -3000
Least count for Elongation (mm) 0.1 0.1 0.1 0.1 0.1 0.1 0.1
Distance between gripping heads (mm) (inclusive of Ram stroke) 100 - 3000 100 - 3000 100 - 3000 100 - 3000 100 - 3000 100 - 3000 100 - 3000
Adjusted in steps (mm) 500 500 500 500 500 500 500
Ram Stroke (mm) 500 500 500 500 600 600 600
Max.Ram Speed (mm / min) 300 200 150 120 60 60 35
Bed Clearance (mm) 320 500
500
550 800 1000 1200
Grips for Round bar dia. (mm) 10 - 30 10 - 30 10 - 40 20 - 50 20 - 60 20 - 70 20 - 80
Grips for Wire Rope dia. (mm) 10 - 22 10 - 25
15 - 35
15 - 40
20 - 50
20 - 60 20 - 70
Total H.P. 1.5 2.5 2.5
3
6
7 9.5
Power Supply 3 Ph, 415V, 50 Hz, A.C.
