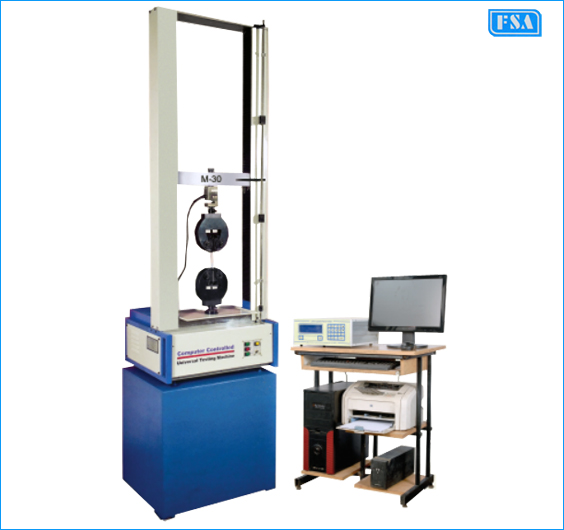

• Variety of tests like Tension, Compression,Tranverse, Peel off, Bend, Shear, etc. are conducted.
• Suitable for testing a wide range of materials like rubber, plastic, ferrous metals, non-ferrous metals, etc. of various
forms like round, flat, thread, wire, dumb bell, fabric, belt, strip, rope, etc.
• AC Servo motor for crosshead control with infinitely variable speed drive.
• Computerized crosshead control Load measurement by load cell.
• Over Load & Over travel safety.
• Latest Windows based, Users friendly, Accurate, Menu driven software.
• On line display of Load, Elongation & Graph.
• Tare load & reset elongation facilities available.
• Build in facility for printing of test results and the graph.
• Selectable units like N, kN, kgf, lbf, inch, mm, etc.
• Fully automatic on screen calculations like UTS, YS, Proof stress, etc. Large storage space for storing test data of
upto 50,000 tests.
• Electronic Extensometer (Optional) is available for proof stress evaluation.
• Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 or 50,000 counts can also be
offered at extra cost
• Various Models – Maximum Capacity from 1 kN to 100 kN.
• Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
| SPECIFICATION | MODELS | ||||||
| M1 | M2 | M5 | M30 | M50 | M75 | M100 | |
| Max. Capacity (kN) | 1 | 2 | 5 | 30 | 50 | 75 | 100 |
| Max. Crosshead traverse excluding grips (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Max. working width (mm) | 400 | 400 | 400 | 400 | 400 | 600 | 600 |
| Fixed and working upper & lower limit switches | √ | √ | √ | √ | √ | √ | √ |
| Overall dimension H x W x D (mm) (Approx.) | 1780 x 630 x 505 | 1780 x 630 x 505 | 1780 x 630 x 505 | 1700 x 630 x 505 | 1920 x 675 x 750 | 2640 x 1180 x 1050 | 2640 x 1180 x 1050 |
| Weight (kg) (Approx.) | 150 | 150 | 150 | 200 | 250 | 450 | 500 |
| Power supply | 3 Phase, 415 V, 50 Hz, AC | ||||||
| Overload protection for load | √ | √ | √ | √ | √ | √ | √ |
| (Software operated & electronically operated in the event of loadcell overload) | |||||||
| Drive Systems | |||||||
| Method of loading | By recirculating balls screws | ||||||
| Crosshead drive motor | AC servo with feed back | ||||||
| Crosshead Speed | 0.5 to 500 mm per min. | ||||||
| Crosshead Control | Computer controlled | ||||||
| Accuracy of Speed in percent | ± 1% | ||||||
| Measurement | |||||||
| Load | By Precision Loads cell’s | ||||||
| Load resolution | 10,000 counts standard (20,000 or 50,000 counts optional) | ||||||
| Load Accuracy | ±1% as per IS : 1828 - 1991 & BS : 1610 - 1964 | ||||||
| Resolution of cross head displacement in mm | 0.01 m | ||||||
| MODEL | CAPACITY | DESCRIPTION | SPECIFICATION | APPLICATION |
| FG 1/1 | 2 kN | Eccentric Roller Grip | 25 mm wide x 5 mm thick | For Dumbell shaped specimens of rubber & Plastics |
| FG 1/2 | 5 kN | Eccentric Roller Grip | 50mm wide x 6mm thick | For Dumbell shaped specimens of rubber & Plastics |
| FG 2/1 | 1 kN | Vice Type Grip | 25mm wide x 4mm thick | For thin flat samples of paper or materials with smaller strength |
| FG 2/2 | 5 kN | Vice Type Grip | 50mm wide x 10mm | For fabric asbestos leather & similar flat & thin materials |
| FG 2/3 | 10 kN | Vice Type Grip | 100mm wide x 10 mm thick | For fabric asbestos leather & similar flat & thin materials |
| FG 6/1 | 1 kN | Motorised Ring Grip | --- | For ‘O’ Rings |
| FG 7/1 | 2 kN | Bollard Type Grip | 20 SWG & Finer | For fine flexible wires |
| FG 7/2 | 5 kN | Bollard Type Grip | Upto 5mm dia | For fine cords |
| FG 7/3 | 20 kN | Bollard Type Grip | 20mm wide | For flexible non-metalic straps |
| FG 7/4 | 10 kN | Double Bollard Grip | Upto 2mm dia | For flexible wires |
| FG 8/1 | 5 kN | Vice cum Wedge Type Grip | 25mm wide x 5mm thick | For rigid wires & strips |
| FG 8/4 | 100 kN | Vice cum Wedge Type Grip | Flat - 35mm wide, thickness 0-10, 10-20mm Round - dia, 5-15, 15-25 mm |
For rigid wires, round bars and flat strips |
| FG 8/6 | 30 kN | Vice cum Wedge Type Grip | Flat - 35mm wide, thickness 0-10 m Round - dia, 5-12 mm |
For rigid wires & strips |
| FG 8/7 | 50 kN | Vice cum Wedge Type Grip | Flat - 35mm wide, thickness 0-10 mm Round - dia, 5-12, 10-17 mm |
For rigid wires & strips of relatively softer materials |
| FG 8/8 | 50 kN | Vice cum Wedge Type Grip | Flat - 35mm wide, thickness 0-8 mm Round - dia, 5-10, 10-15 mm |
For rigid wires, round bars and flat strips of relatively harder materials (harder steels, etc.) |
| FG 10/1 | 2 kN | Grip for Special Moulded Plastics |
Moulded durabell specimen | As per IS 867-1963 |
| FG 11/1 | 2 kN | Compression Cage | 100 x 65 x 200 mm height | For conducting compression test |
| FG 11/2 | 10 kN | Compression Cage | 150 x 80 x 200 mm height | For conducting compression test |
| FG 11/3 | 50 kN | Compression Cage | 150 x 150 x 200 mm height | For conducting compression test |
| FG 12/1 | 15 kN | Bend Test Attachment | Span Variable from 40 mm to 250 mm | For conducting transverse or bend test |
| FG 13/1 | Elongation measures upto 800 mm | High Elongation Electronic Extensometer |
L.C. 0.01mm, Maximum distance between knife edges 800 mm | For measuring the elongation of plastics & similar materials |
| Grips to suit application are available. | ||||
