BIE Make Vertical Balancing Machines are extremely robust and resistant to external adverse influences. The rough workshop environment in both one off and large volume production is where vertical balancing machine can prove their strength. Hard bearing type single plane vertical balancing machines are designed after years of experience. Occasional overloading caused by large initial unbalance or rotors which are slightly outside the specified weight range, are never a problem. Regardless of your application requirements, our vertical balancing machine will provide precision unbalance measurement and dependable long term stability.
| MODEL | UNIT | FVBM-3 |
FVBM-5 | FVBM-10 | FVBM-30 | FVBM-50 | FVBM-100 | FVBM-300 |
| Weight of rotor (Min-Max) | kg. | 0.3 - 3 | 0.5 - 5 | 0.5 - 10 | 1 - 30 | 1.5 - 50 | 3 - 100 | 10 - 300 |
| Maximum Dia of rotor | mm |
300 |
400 |
400 |
500 |
500 |
600 |
1000 |
| Balancing speed (n) | RPM | 1000 | 1000 | 1000 | 750 | 600 | 500 | 350 |
| Power of Drive Motor | Hp | 0.33 | 0.33 | 0.75 | 1.5 | 1.5 | 3 | 5 |
| Acceleration capability in GD2n2 | kgm2n2 | 0.29 x 106 | 0.29 x 106 | 0.37 x 106 | 0.66 x 106 | 0.66 x 106 | 2.28 x 106 | 10.6 x 106 |
| Min. Unbalance Mass Measured | gm | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Max. Unbalance Mass Measured | Kg | 0.2 | 0.2 | 0.2 | 1 | 1 | 2 | 2 |
| Minimum achievable unbalance (For maximum weight of the rotor) | Microns or gmm / kg | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
0.5 |
0.5 |
| Machine Confrom to IS:13277 / ISO:2953 / ISO:21940 | ||||||||
Computerized Vertical Dynamic Balancing Machine, Model : FVBM-10-PC
Vertical Dynamic Balancing Machine, Model : FVBM-10D

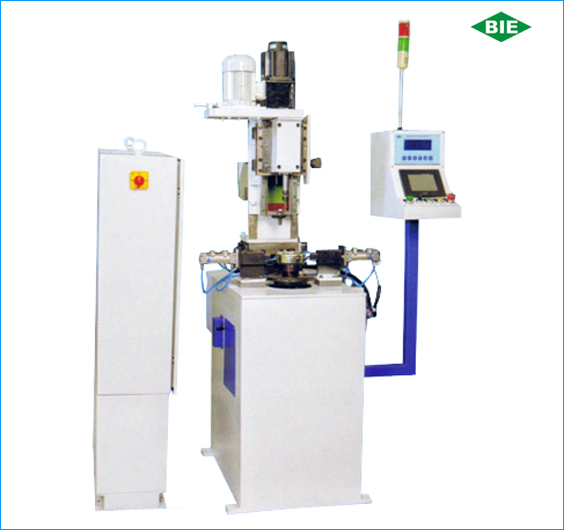

Vertical Automatic Balancing Machine with DSP Based Digital Panel & Unbalance Correction Facility, Model:FVBM-10A (Automatic)
